EBC 357

Fanless Embedded Computer Intel Atom® Processor E39XX & J3455E Product Family

主要特点
  • On-board Intel Atom® processor E39xx and J3455E processor family

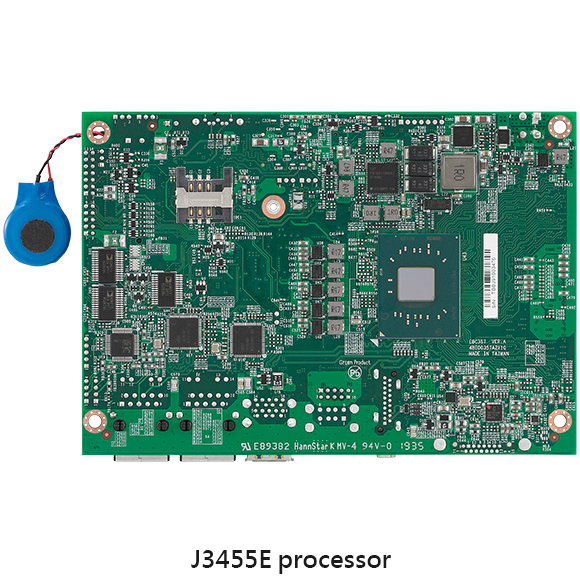

  • CPU upside down design
  • 2 x 204-pin SO-DIMM DDR3L
  • Triplex display: HDMI/VGA/LVDS (or eDP)
  • 1 x M.2 (2242) B key
  • 2 x Intel® i210-IT PCI express Gigabit Ethernet
  • 4 x SATA 2.0
  • 2 x USB 3.0, 4 x USB 2.0, 4-in/4-out GPIO, Mic-in, Speak-out
  • Serial port: 3 x RS232, 1 x RS232/422/485 port
  • Support AT/ATX mode and single +12VDC input


Overview

EBC 357 is under the 3.5” SBC series which is based on multi-core SoC Intel Atom® processor (formerly codenamed “Apollo Lake”). EBC 357 series operates at wide temperature range with low power consumption. This series of 3.5-inch board is aimed at embedded applications. It supports a maximum memory of 16GB DDR3L SDRAM. Also, it offers three display outputs of VGA, HDMI and LVDS in order to provide the flexibility of supporting a range of peripherals and triplex display. The EBC 357 series is ideal for battery-powered portable devices, multimedia HMI panels, outdoor systems installed in harsh environments, home automation and thin clients.

Specifications

CPU Support
  • Intel Atom® processor E39xx processor family, 14nm core, Quad/Dual Core,
    1.8/2.0GHz, 2 x L2-Cache 1MB 16-way shared per 2 cores, TDP: 6.5W/12W
  • Intel Atom® processor J3455E processor, 14nm core, Quad Core,
    1.5 Up to 2.3GHz, 2 x L2-Cache 1MB 16-way shared per 2 cores, TDP: 10WTDP: 10W
Main Memory
  • Dual DDR3L/SO-DIMMs, up to 8GB
Display
  • 1 x HDMI connector (resolution up to 3840 x 2160@30Hz)
  • 1 x VGA connector (resolution up to 1920 x 1200)
  • LVDS interface: 1 x dual (18/24 bit) LVDS panel (resolution up to 1920 x 1080)
Storage
  • 1 x SATA III
  • 1 x M.2 (2242) B key
Audio
  • Realtek ALC888s HD codec
  • 1 x 4 2.0 pitch pin header for Mic-in
  • 1 x 4 2.0 pitch pin header for Line-out
  • 1 x 5 2.0 pitch pin-header for Speak-out
On-board LAN
  • 2 x Intel® I210-IT GbE controller
  • Support PXE boot from LAN, wake on LAN function
Expansion Slot
  • 1 x M.2 slot M key support PCIe (default) & SATA interface
Power Requirements
  • AT/ATX mode (by jumper setting default-AT)
  • 4-Pin power connector (right angle) for DC power input
  • Single power 12V DC input
I/O
  • Serial port x 4
    -COM1/3/4: RS232 1 x 10-pin 1.0mm JST connector. (COM3/4 optional)
    -COM2: RS232/422/485, 1 x 10-pin 1.0mm JST connector
  • 4-in/4-out GPIO
  • One 2 x 7 2.0mm pin header with SMBus/power on-off/system reset/power/storage LED
  • One 4-pin fan connector support PWM fan
Rear I/O
  • 1 x VGA & 1 x HDMI display output
  • 2 x GbE controller
  • 2 x USB 3.0 & 2 x USB 2.0
Optional function
  • TPM module (EBK-TPM)
Dimensions
  • 146mm (L) x 102mm (W) (5.7” x 4.0”)
Mechanical & Environment
  • Operating temperature : 0C~60°C for J3455E CPU SKU
  • Operating temperature : -20C~60°C for E3950 & E3930 CPU SKU
  • Storage temperature : -20°C~80°C
  • Relative humidity : operating 10%~90%, non-condensing
Operating System
  • Windows 7/8.1/10
  • Linux
Certificate
  • EMC & Safety & RCM
  • CE/FCC Class A
Optional Accessories
  • 7P+15P SATA cable (P/N: 60233AT136X00)
  • COM port cable (P/N: 60233SIO62X00)
  • EBC357 serial heat sprder (P/N: TBD)

Ordering Information

EBC 357-E3950L (P/N: 10E00035703X0 ) RoHS Compliant
Low power embedded board with Intel Atom® processor E3950 and extended -20˚C~60˚C,
with HDMI/VGA/LVDS, 2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA

EBC 357-E3930L (P/N: 10E00035704X0 ) RoHS Compliant
Low power embedded board with Intel Atom® processor E3930 and extended -20˚C~60˚C,
with HDMI/VGA/LVDS, 2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA

EBC 357-E3950E (P/N: 10E00035705X0 ) RoHS Compliant
Low power embedded board with Intel Atom® processor E3950 and extended -20˚C~60˚C,
with HDMI/VGA/eDP, 2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA

EBC 357-E3930E (P/N: 10E00035706X0 ) RoHS Compliant
Low power embedded board with Intel Atom® processor E3930 and extended -20˚C~60˚C,
with HDMI/VGA/eDP, 2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA

EBC 357-J3455L (P/N: 10E00035709X0 ) RoHS Compliant
Low power embedded board with Intel Atom® processor J3455 and extended 0˚C~60˚C,
with HDMI/VGA/LVDS, 2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA

EBC 357-J3455E (P/N: 10E00035708X0 ) RoHS Compliant
Low power embedded board with Intel Atom® processor J3455 and extended 0˚C~60˚C,
with HDMI/VGA/eDP, 2 x USB 3.0, 4 x USB 2.0, 2 x COMs, 1 x M.2 B key, 2 x Gigabit LAN, 1 x SATA
